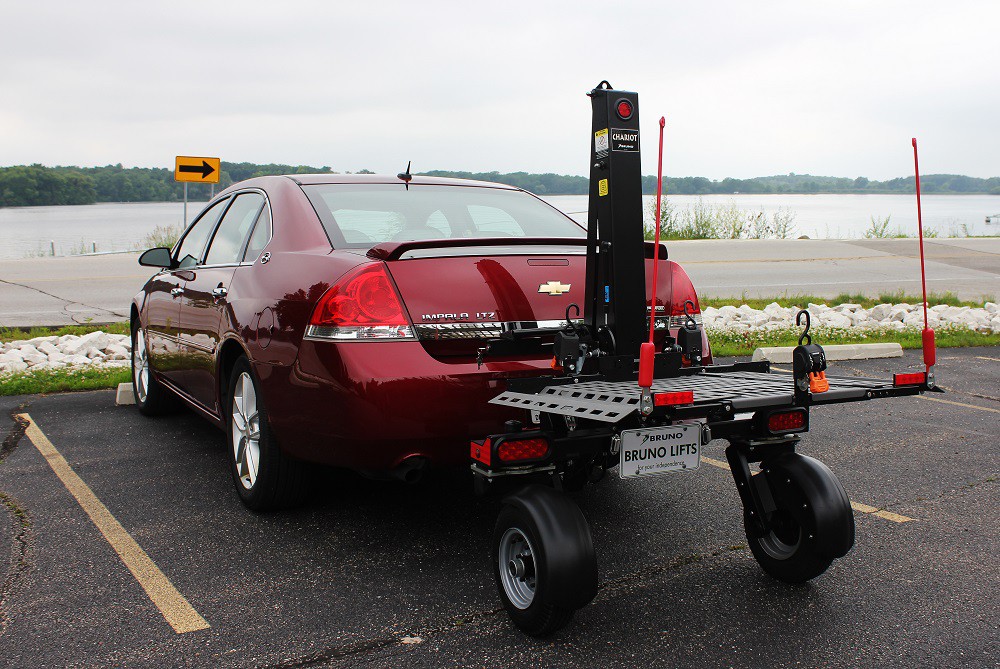

Bruno Chariot Scooter Lift on Wheels

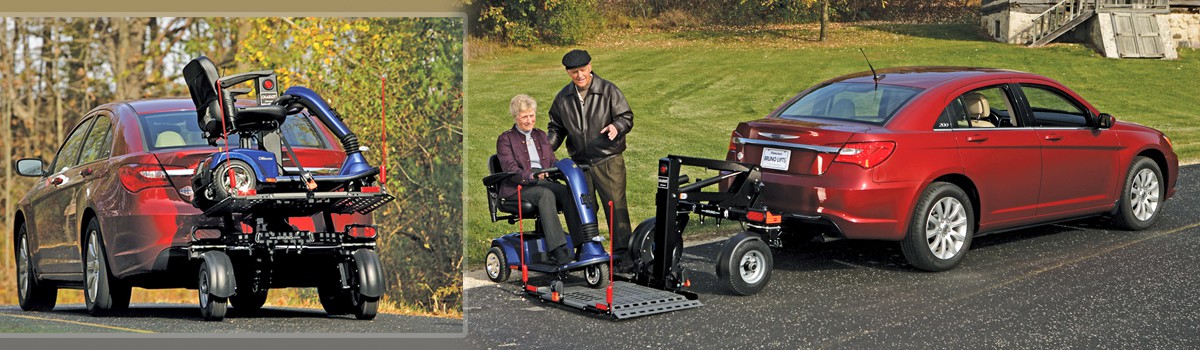

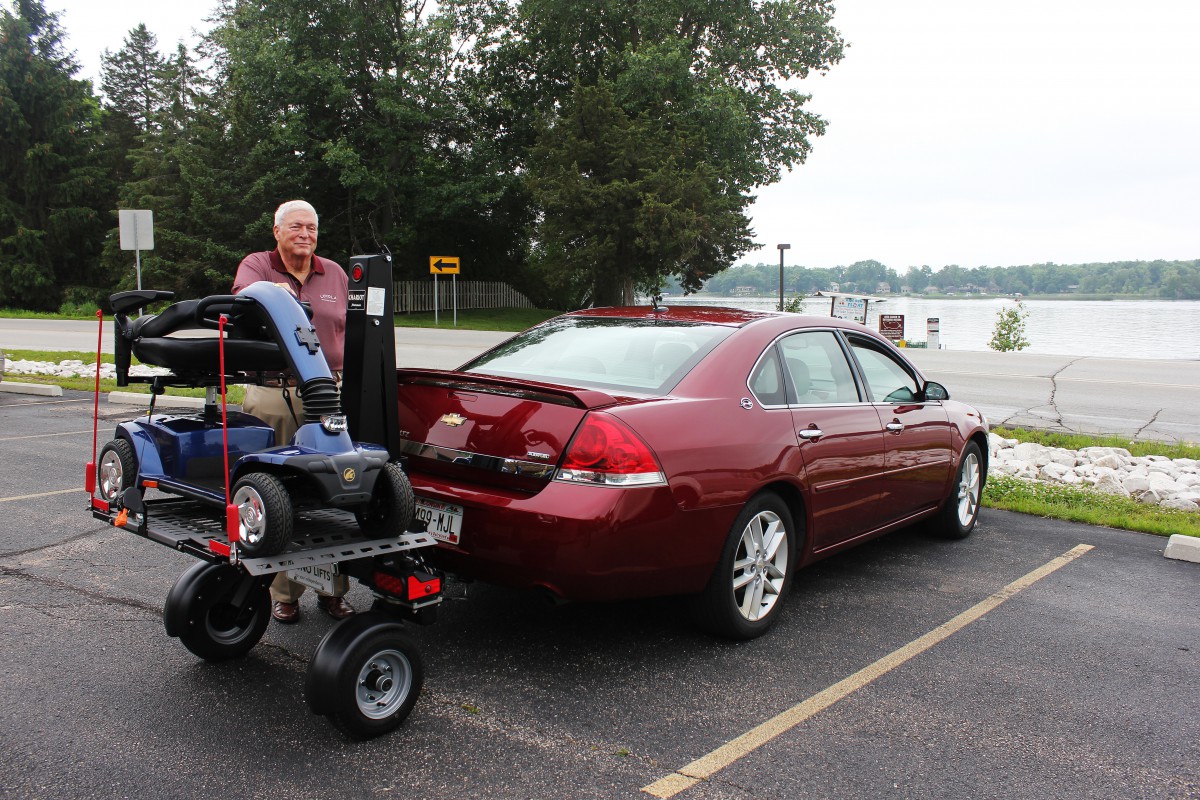

This groundbreaking product lifts and stores your unoccupied scooter or powerchair (weighing up to 350 lb/160 kg) outside your small, mid-sized, or large car at the touch of a button. Simply roll your mobility device on the platform from either side, hit a button, and let the Chariot do the lifting for you. Self-tensioning retractable belts are included for securement (one hand operation).





Bruno Chariot Highlights

  • Swivel Wheels – the lift follows precisely, even when driving the vehicle in reverse
  • Independent Suspension
  • No jackknifing
  • Fully Powered - Makes lifting and storing your scooter or powerchair outside your car virtually effortless - one button operation
  • 350 lb/160 kg lifting capacity!
  • Safe/Reliable - 3rd party tested: Extreme rough road conditions, laboratory testing, and environmental operating extremes
  • Drive on/off either side of platform - no reversing necessary
  • Platform folds easily using one hand
  • Retractable belts are included for securement (one hand operation)
  • Access rear vehicle hatch simply by lowering lift a bit (most hatchbacks)
  • Standard lighted license plate holder (for use in some states) and light package, including running and brake lights, turn signals
  • Manual backup system
  • Optional corner markers
  • Optional spare tire
  • Can be powered by the vehicle's battery or the optional Bruno Pow'rPac (a self-contained power supply that is charged through the vehicle's power port). Allows unit operation even if vehicle battery is inoperable.
  • No structural modifications to your vehicle - mounts to your vehicle's class I or class II frame mount receiver hitch (not included)
  • Can reinstall on your next vehicle
  • Plugs into vehicle's Flat-4 wiring connector (required)
  • Works with small, mid-size, or large cars (check with your local Bruno dealer to confirm compatibility with your vehicle)
  • Sales, installation and service provided by our factory-trained network of dealers

Bruno Chariot User Requirements

  • Walk from the front to the rear of the vehicle and vice versa
  • Stand two to three minutes
  • Drive mobility device on/off platform
  • Hold down a button on the control arm
  • Secure mobility device - lean over, release lever, connect hook to receiver on mobility device and then engage lever (all can be done with one hand).







Bruno Chariot Specs

  • Lifting Capacity: 350 lb/159kg
  • Installed Weight: 310 lb/141kg
  • Platform Size: Adjustable 47 in/120cm (L) x
    33 in/84cm (W)
  • Max. Scooter/Powerchair Width: 27 in/68.5cm
  • Max. Scooter/Powerchair Wheelbase: 38 in/96.52cm
  • Hitch Height: 8.5 in/22cm to 15.5 in/39cm
  • Hitch Class: Frame mounted Class I or II
  • Overall Height: 65 in/165cm
  • Applications: Sedans and select CUV's/SUV's
  • Warranty: 3 years
